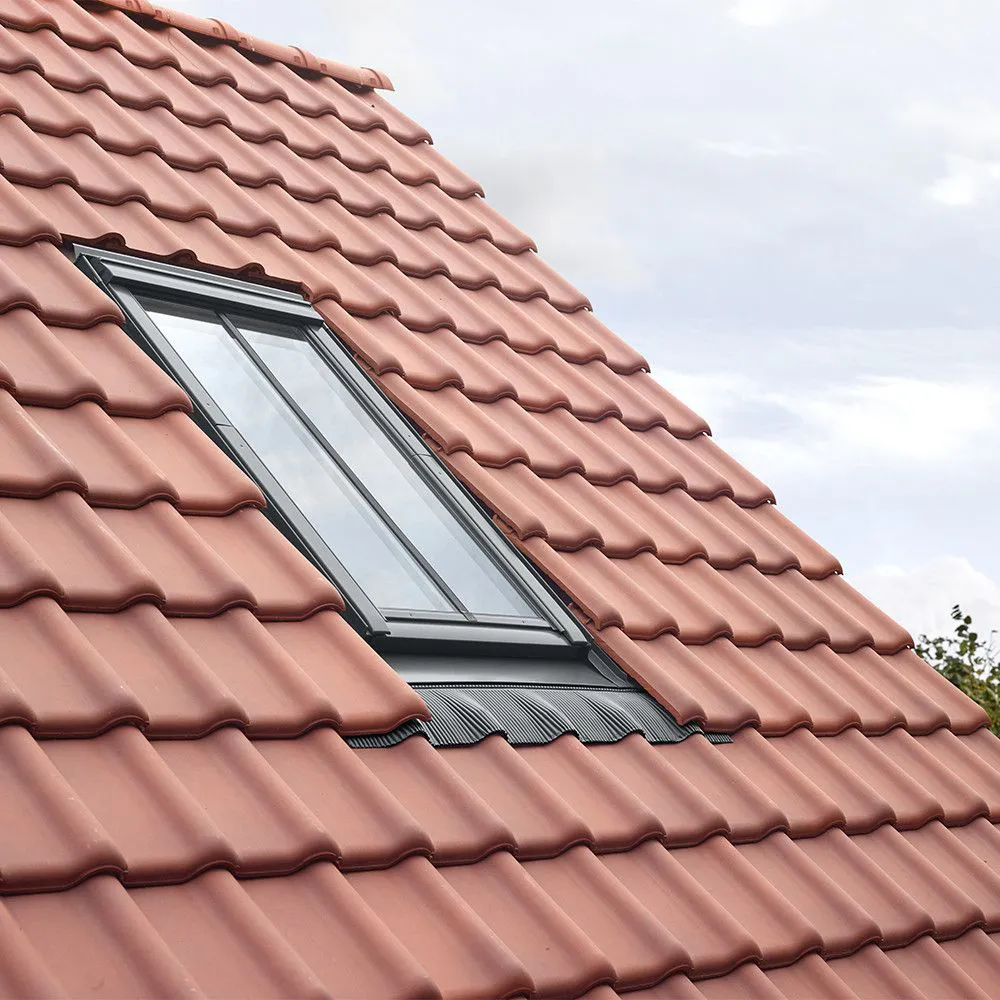

VELUX GGL CK04 SD5J2 Conservation Window for 90mm Tiles - 55cm x 98cm

Delivering an ideal blend of both the present and the past, this GGL CK04 SD5J2 centre pivot window from VELUX has a white painted internal finish that is bright and perfectly suits modern interiors. The exterior profile is black profile and, alongside the glazing bar, is designed to complement conservation buildings. It seamlessly coordinates with original aesthetics due to the traditional appearance.

The top control bar with integrated ventilation allows for a circulation of air even if the window is closed, while the practical centre pivot function makes for easy cleaning - after rotating 180°, lock into position with the built-in barrel bolt and wipe down the outside glass. You can operate the window smoothly thanks to the high-quality pivot hinges, and the Thermo-Technology™ provides energy efficiency as it transfers less energy and keeps it warm indoors. Click-on covers make for installations that are time-saving and easy, while remaining safe.

Features & Benefits: VELUX GGL CK04 SD5J2 Conservation Window for 90mm Tiles - 55cm x 98cm

• Ideal for traditional properties
• Designed for roof pitches from 20° up to 90°
• Modern white painted interior and a classic black exterior
• Double glazed window features a 1.3W/m²K uValue
• Recessed flashing kit for flat or profiled tiles up to 90mm thick
• Easy to manually operate with a top control bar
• 10-year guarantee on windows and flashings

With an underfelt collar (BFX) to create a watertight seal between the roof and the window, as well as an insulation collar (BDX) that removes cold bridges and prevents heat loss, this roof window features an EDJ recessed flashing. Compatible with tiles that have profiles up to 90mm thick, this flashing has a sleek finish that is streamlined, and it also ensures that the window fits 40mm deeper into the structure. This makes for minimal protrusion above the roofline. The blue line signals to where brackets should be positioned.

VELUX double glazing (70) provides premium features and high comfort. The UV filter prevents the fading of furnishings when subject to the sun's harmful UV rays, while the toughened glass equips the exterior pane with additional strength to withstand external environmental force. Alongside 35dB of sound insulation, the rain noise reduction keeps quiet atmospheres protected from outdoor noise and, if windows are broken, the safety lamination reduces the risk of scattered glass.

Standards & Certification

• BBA certified

Please note:

• This conservation window comes with a glazing bar and a recessed flashing kit for tiles up to 90mm thick (EDJ).
